Ivanpah Race Buggy Specifications
...and more photos!
| Stainless Steel Ivanpah Buggy Specifications | |
|---|---|
| Manufacturer: | Windspeed Pro |
| Origin: | Las Vegas, Nevada, USA |
| Material: | T304 & T316 Stainless Steel |
| Rear Axle Diameter: | T316 2" X .188 wall seamless stainless steel tube |
| Rear Axle Width: | 70" (1.78 m) end to end |
| Overall Width with Tires: | 76" (1.93 m) to outside of standard rear wheels 80" (2.02 m) to outside of bigfoot wheels |
| Rear Axle Wheel Bolts: | 20 mm 10.5 case hardened |
| Front Axle: | 20 mm T316 Threaded stainless steel |
| Dry Weight: | 98lbs. (44.4 kg) |
| Side Rail Dimensions: | 1.25" .120 wall stainless steel |
| Side Rail Width (between rails): | 15.5"(39 cm) |
| Down Tube Dimensions: | 2" X 2" .120 wall square stainless tube |
| Front Fork Dimensions: | |
| Wheel Width/Capacity: | 9" (23 cm) overall width between axle plates |
| Fork Plate Construction: | 3/16" stainless plate w/1" .120 wall stainless tube |
| Tires: | Standard, Bigfoot Lights & Bigfoot tires |
| Wheels: | Standard & bigfoot ABS plastic injected wheels |
| Optional Wheels: | Optional polished aluminum wheels (standard size only), |
| 4130 Chrome Molly Steel Ivanpah Buggy Specifications | |
|---|---|
| Manufacturer: | Windspeed Pro |
| Origin: | Las Vegas, Nevada, USA |
| Material: | 4130 Chrome Molly & Carbon Steel |
| Rear Axle Diameter: | 2" x .120 wall tubing |
| Rear Axle Width: | 62" (1.57 m)end to end |
| Overall Width with Tires: | 70" (1.78 m) to outside of standard rear wheels 73" (1.855 m) to outside of bigfoot wheels |
| Rear Axle Wheel Bolts: | 20 mm 10.5 case hardened |
| Front Axle: | 20 mm Threaded Carbon Steel |
| Dry Weight: | approx. 85lbs. (38.5 kg) |
| Side Rail Dimensions: | 1.25" .120 wall steel tube |
| Side Rail Width (between rails): | 15.5"(39 cm) |
| Down Tube Dimensions: | 2" X 3" .120 wall rectangular tube |
| Front Fork Dimensions: | |
| Wheel Width/Capacity: | 9" (23 cm) overall width between axle plates |
| Fork Plate Construction: | 3/16" steel plate w/ 1" .120 wall tube |
| Tires: | Standard, Bigfoot Lights & Bigfoot tires |
| Wheels: | Standard & bigfoot ABS plastic injected wheels |
| Optional Wheels: | Optional polished aluminum wheels (standard size only), |
Specifications may change without notice.
 |

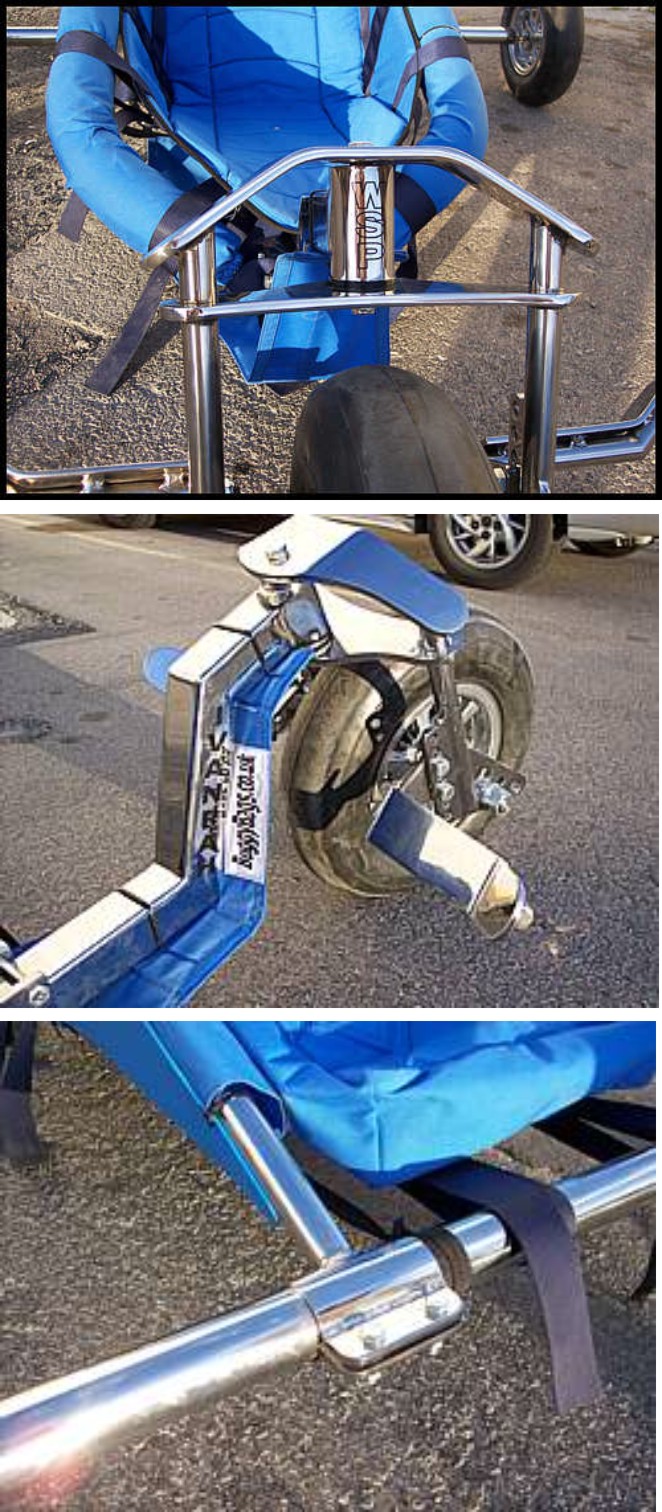

| Some detail photos of the staineless steel version of the Ivanpah bug. Note the optional splash guard in the ceter picture, made by the world famous BuggyBags of the UK. |
 |

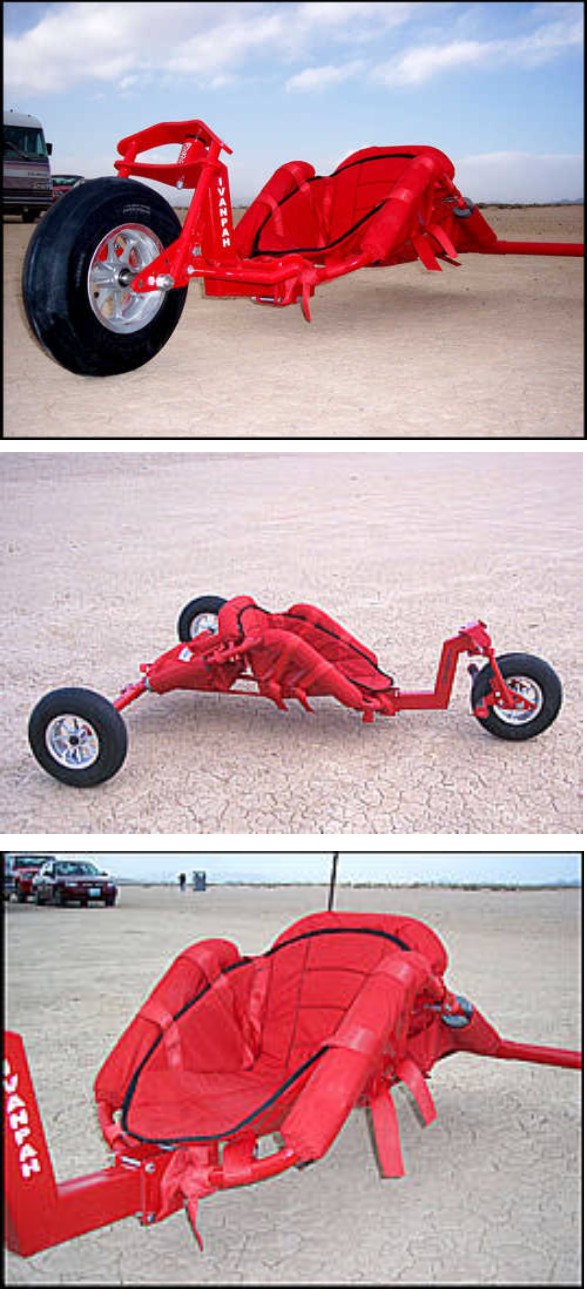

| Ivanpah buggy steel version in baked-on powder-coated finish. The seat is also hand crafted by BuggyBags who also do all the fabric work for Popeye The Welder. |
